SHOCK
ABSORBERS.

67MM BODY · 60MM PISTON · INDEPENDENT 8+8 STAGE ADJ

A monotube remote-reservoir shock with independent compression and rebound adjustment and adjustable ride height.

• 67mm outer-diameter seamless steel body
• 60mm high-flow piston
• Independent 8-stage compression adjustment
• Independent 8-stage rebound adjustment
• 55mm remote-canister piston

COMING SOON

The Monotube range is coming soon. Vehicle applications and availability will be confirmed when the range is released.

41MM BORE · FOAM CELL · TWIN TUBE

The micro-cellular foam insert reduces aeration and cavitation to resist shock fade during sustained off-road use.

• Twin-tube design
• Micro-cellular foam insert
• 18mm double chrome-plated rod
• Multi-stage velocity-sensitive valving
• 4-year/unlimited-km recreational warranty; conditions apply

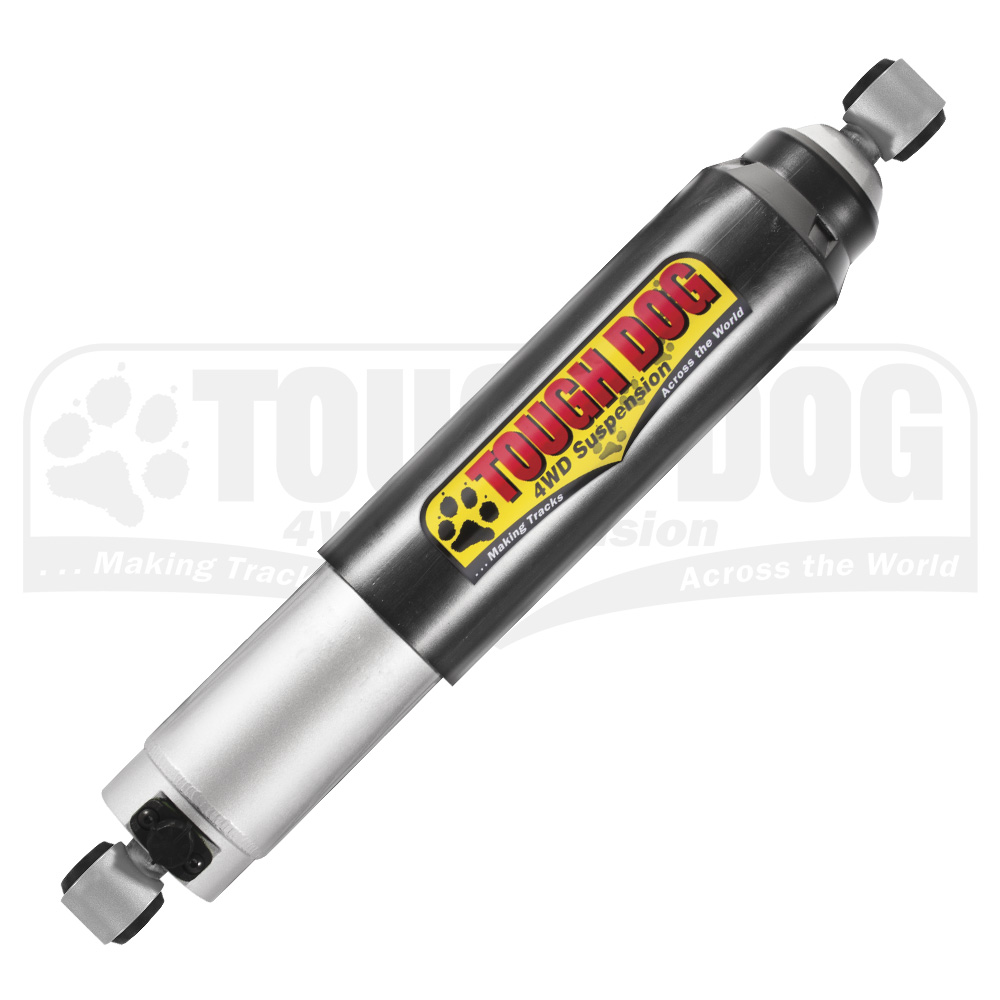

40MM BORE · 60MM CASING · 9-STAGE ADJ

Nine external damping settings let drivers tune ride control for changing uses and conditions, with Foam Cell technology to resist fade.

• 40mm internal bore
• 60mm external casing
• 18mm chrome-plated rod
• Foam Cell technology
• 4-year/unlimited-km recreational warranty; conditions apply

45MM BORE · 70MM CASING · 9-STAGE ADJ

A large-bore, foam-cell adjustable shock for selected high-lift applications, with nine external damping settings.

• 45mm internal bore
• 70mm external casing
• 22mm chrome-plated rod
• Foam Cell technology
• 4-year/unlimited-km recreational warranty; conditions apply

CONFIRM YOUR APPLICATION

Explore the RALPH shock absorber range with your Tough Dog dealer. Confirm the exact vehicle application and product specification before choosing a shock.

LOW-PRESSURE NITROGEN · VELOCITY-SENSITIVE VALVING

Designed for control and comfort, with multi-stage velocity-sensitive valving for light and medium 4WDs and leaf-sprung vehicles.

• Low-pressure nitrogen gas
• Multi-stage velocity-sensitive valving
• Double chrome-plated shaft
• High-temperature all-weather fluid
• 3-year/unlimited-km recreational warranty; conditions apply
